MONOLITH RF03‑U1

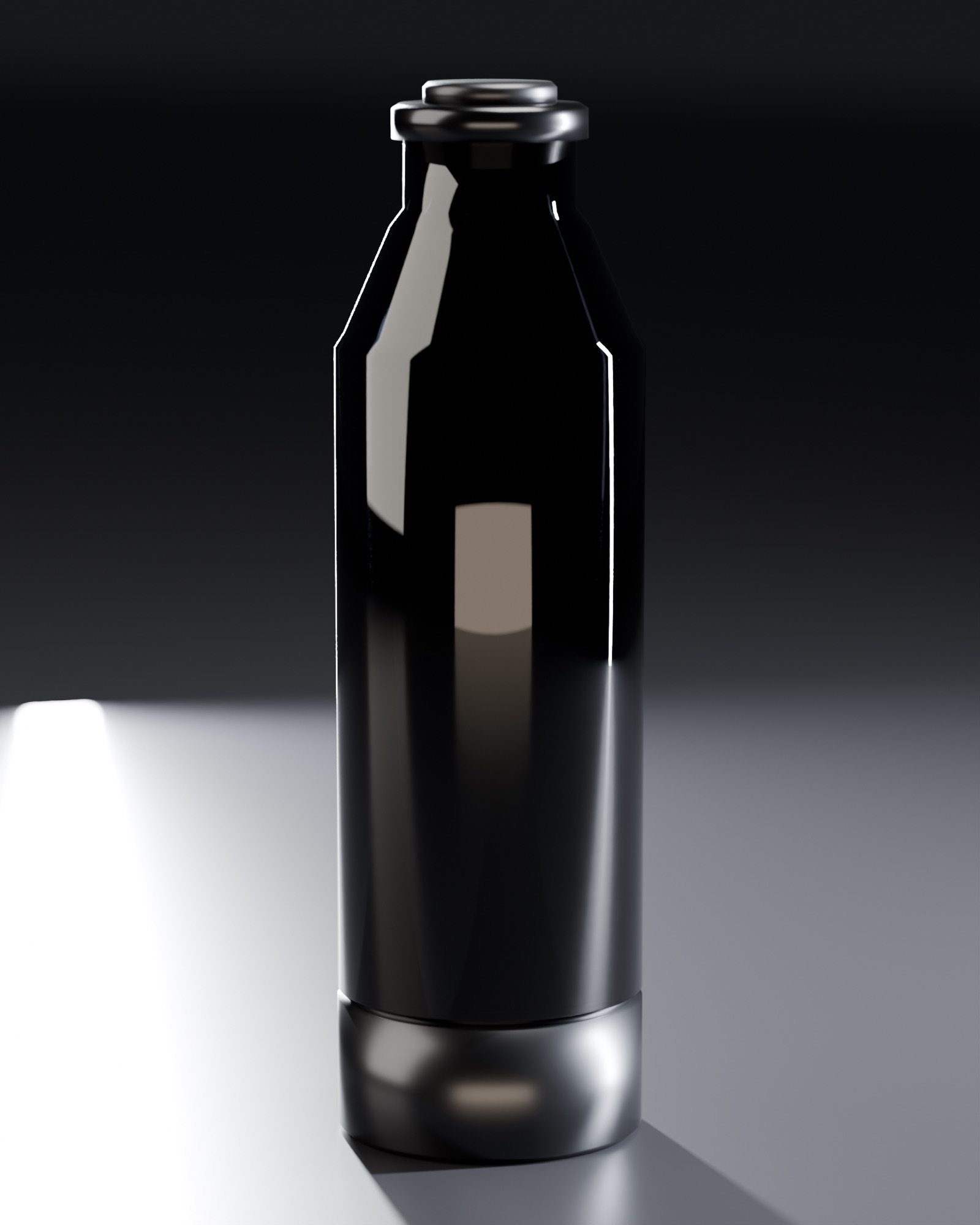

A permanent smoked-glass atomizer that takes sealed replacement cartridges through a keyed dock designed so the cartridge never rotates.

Role: Framing, research, architecture, system definition, validation planning
Project type: Independent project
Stage: Concept
Year: 2026 — ongoing
Tools: Rhino
Images: 3D renders

01 — The product in 10 secondsMONOLITH RF03-U1

You already own the bottle. You buy it again anyway.

What it is: A permanent smoked-glass atomizer (Ø45 × 154 mm) that takes sealed cartridges through one keyed dock.
Who it is for: People who rebuy a fragrance they already own.
The problem: Every repeat purchase ships the glass, pump, cap and collar again.
What is different: As designed, a 60° cap turn lifts the cartridge 4 mm without rotating it, so the seal would engage before the valve opens. Only the dock would be shared, as U-DOCK.

U50 envelope · Ø45 × 154 mmSpecified intent: 154 mm
Cap turn → 4 mm axial travelSpecified intent: 60°
Cartridge rotation during dockingDesigned: 0°
3D-printed form model — form & handling onlyIn prototype · form model only: 1

02 — The design challenge

Every refill ships the hardware again.

Each repeat purchase of a fine fragrance ships the glass, pump, cap and collar again. RF03-U1 splits the object in two. A permanent atomizer keeps the spray engine, the manifold, a short probe and the bottom mechanism. A sealed cartridge carries the reservoir, the valve, the fitment and the full-length dip tube. Only the docking geometry between them would be standardised.

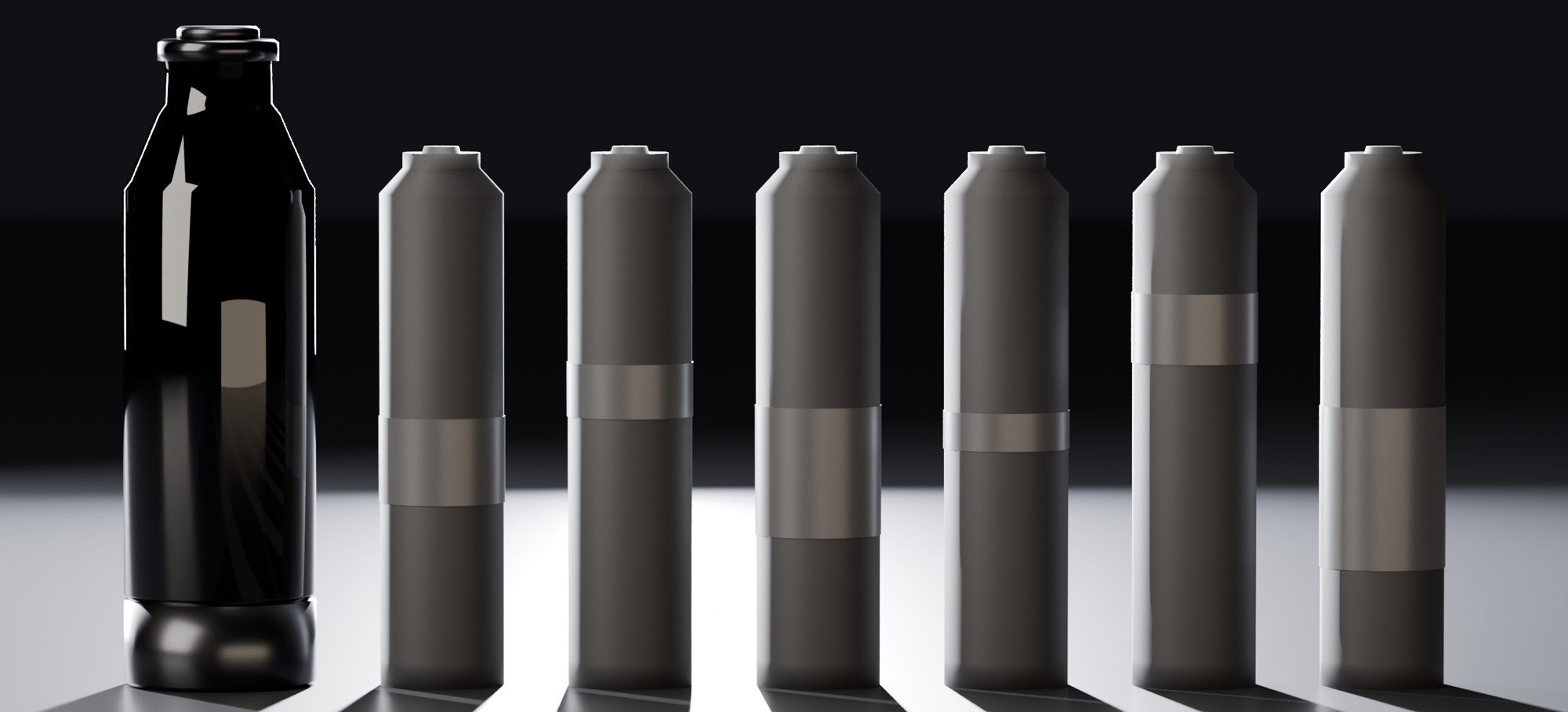

One permanent object, six consumables, one docking geometry — cartridge bands are placeholders; no fragrance house is depicted

03 — My contributionIndependent project

What I did.

Self-initiated: no client, no academic host, no employer. No fragrance house is a collaborator, supplier or endorser.

Framing and research
System architecture
Docking mechanism definition
Interface standard and the U-DOCK mark
Documentation and drawings
Validation planning

04 — Design response5 decisions · reason · evidence

The decisions that shaped it.

Decision 01

The cartridge never rotates

Rotation at the interface would wipe the seal, so the design avoids it: the user turns the bottom cap, and a three-ramp cam turns that into purely axial travel.

Designed

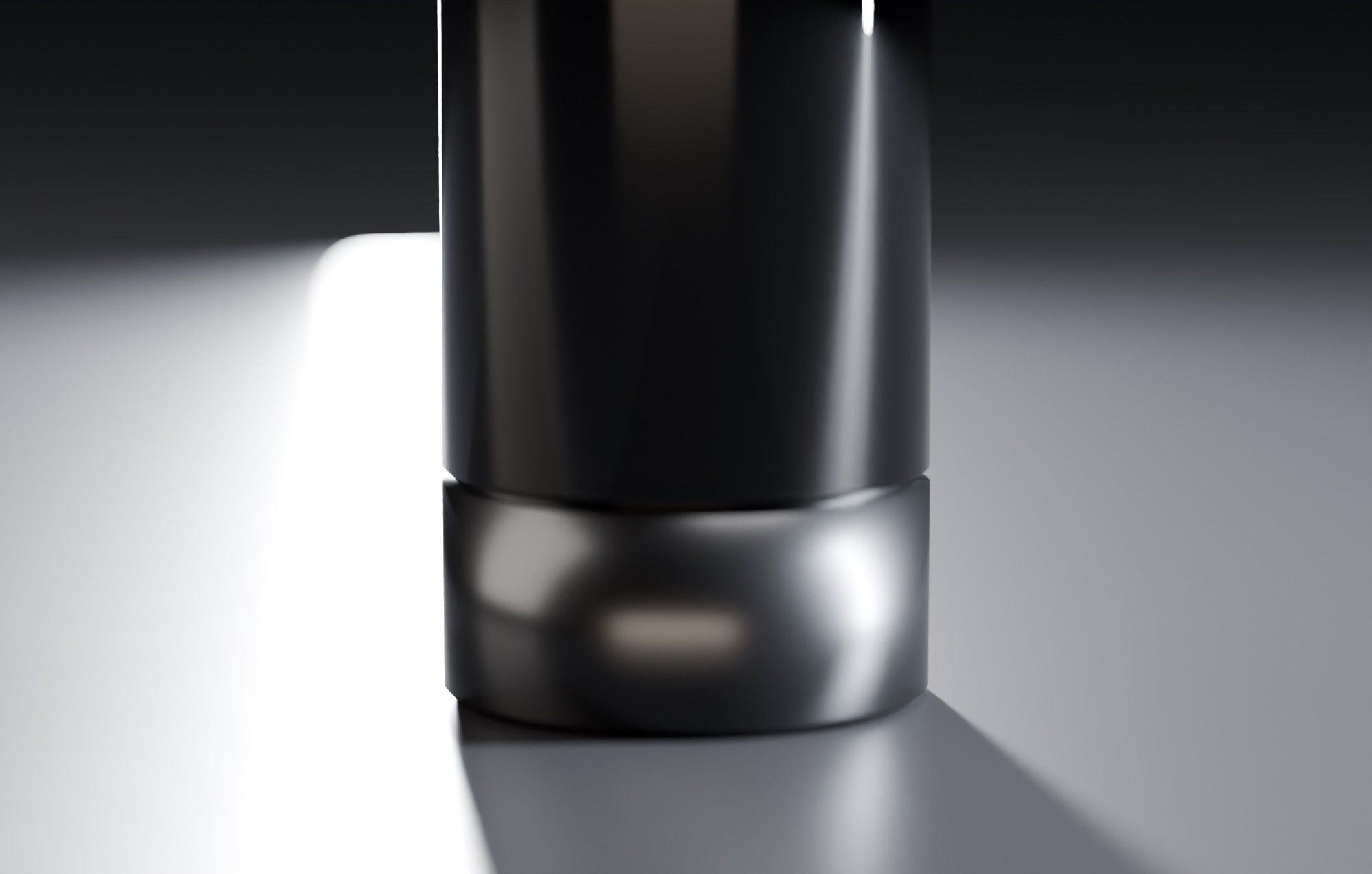

The cam-driven bottom cap — the only part the user turns

Decision 02

Seal before open

Designed so the outer seal engages before the valve opens. On the way out the order reverses: the valve closes before the seal lets go.

Designed · state order

Section at the locked state — AI-assisted reconstruction from the envelope documents, not a measured drawingReconstruction

Decision 03

A short permanent wet path

Reservoir, valve, fitment and the full-length dip tube leave with the cartridge; the atomizer keeps only the spray engine, the manifold and a short probe.

Designed

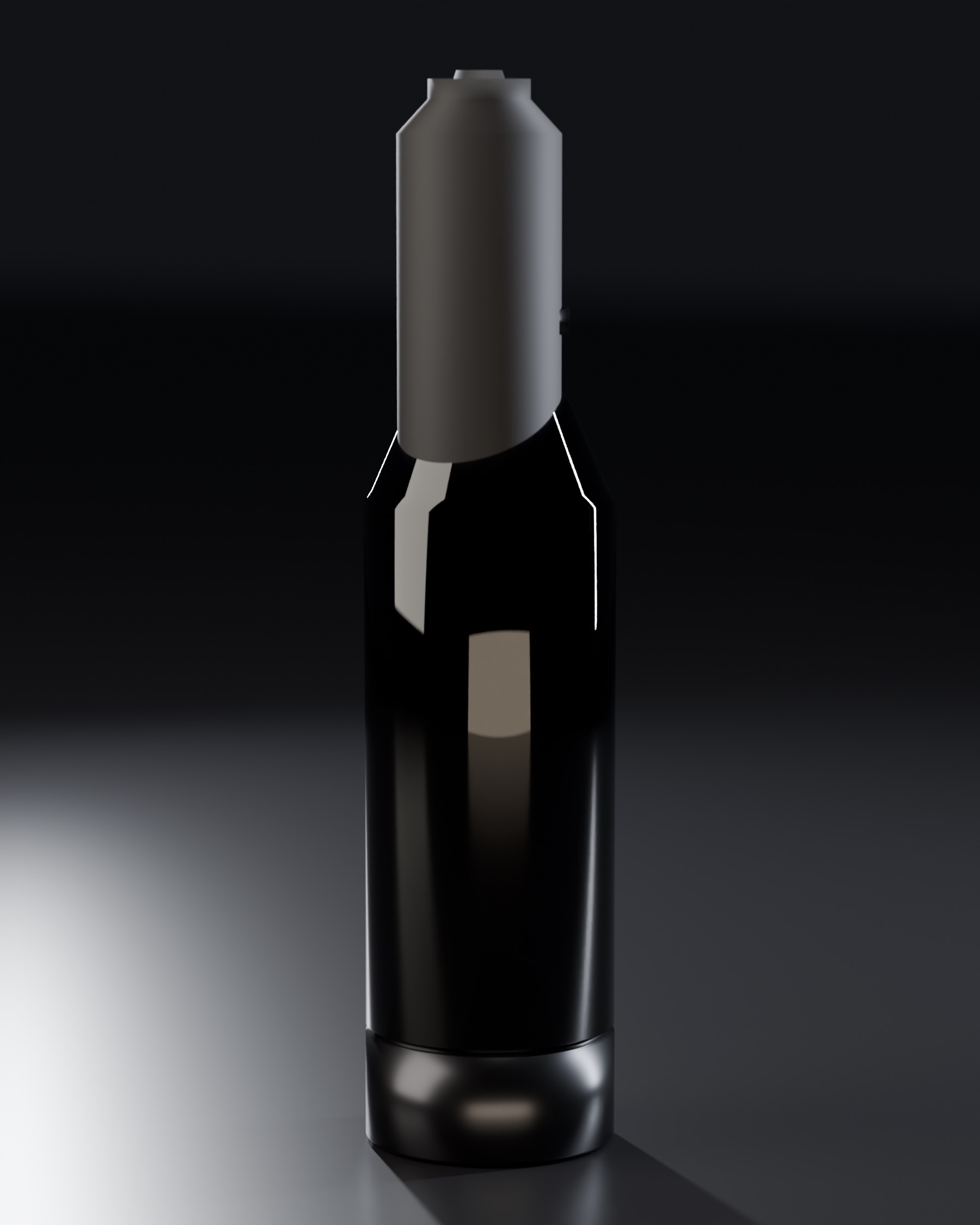

Cartridge swap: the reservoir leaves as one sealed unit

Decision 04

The load bypasses the glass

Designed so the carrier loads the cartridge’s rigid base foot; the glass is never a bearing or a cam reaction member.

Designed

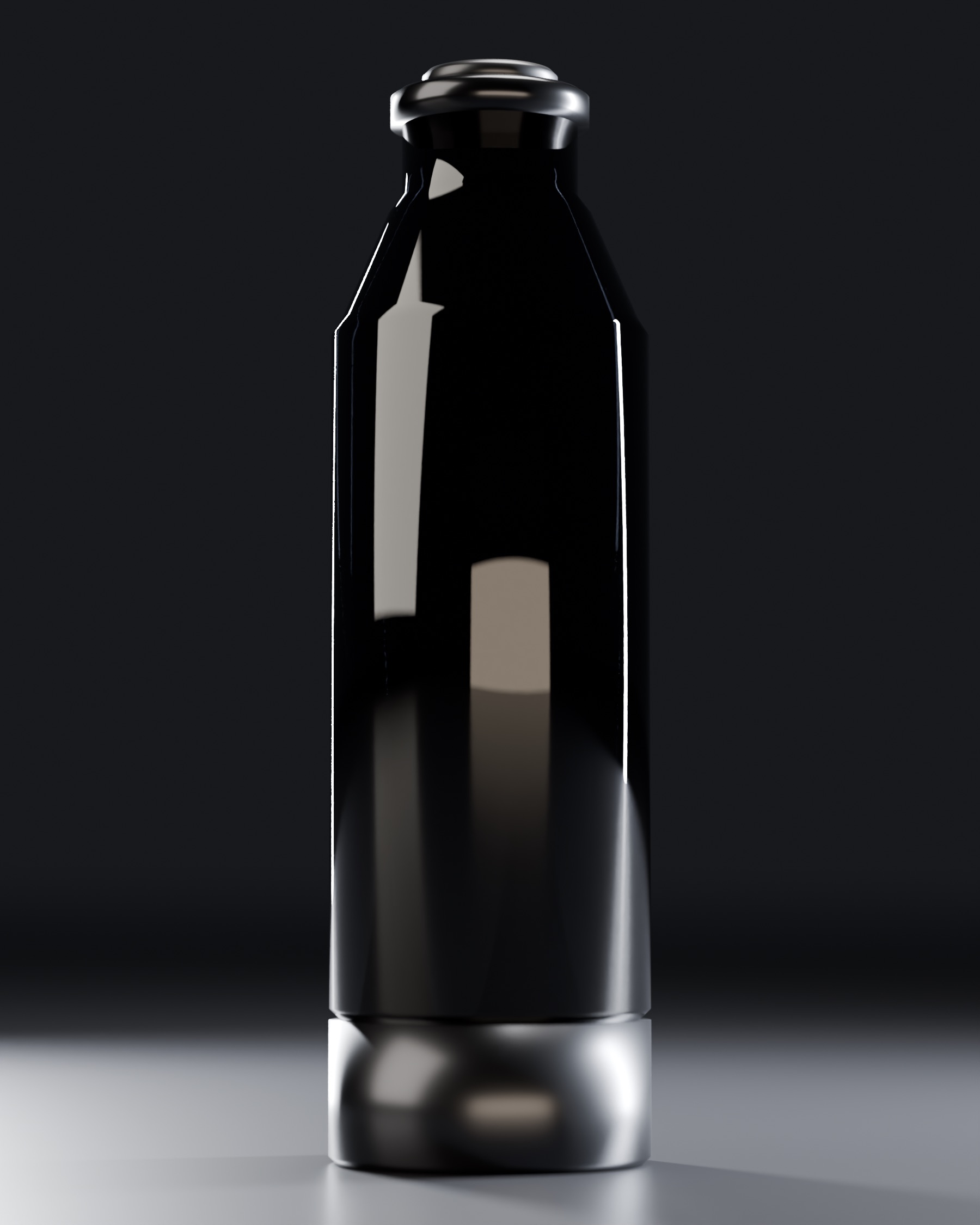

Low three-quarter: smoked glass on the blackened-steel cap

Decision 05

Share only the interface

Standardise the fitment, valve, probe axis and key; leave scent, graphics and authentication to each house. Cross-brand adoption is a hypothesis, not a claim.

Specified intent · hypothesis

U-DOCK: a keyed bore — keyway = datum C, centre dot = probe and valve axis

05 — Form developmentWhat changed, and why

Directions set aside, and why.

Directions set aside

Each for a mechanical or material reason, not a stylistic one: a paper pouch with a piercing straw (a sharp probe cannot reseal); a screw-in rotating cartridge (rotation reaches the seal); a long reusable dip tube (the largest wet path stays in service); an aluminium probe chosen for looks (appearance cannot select a formula-contact material).

06 — Product architecture & engineeringConcept

How it is built.

Architecture and starting targets, documented as a validation programme. Nothing is validated: travel, torque and the valve stroke are outputs of a test rig that is specified, not built.

Key dimensions and their claim level
Item	Value	Level
U50 envelope	Body Ø45 × 154 · cartridge Ø29 × 126 mm	Specified intent
U100 envelope	Body Ø55 × 154 · cartridge Ø39 × 126 mm	Specified intent
Radial budget	8 mm per side	Specified intent
Cap turn → travel	60° → 4 mm · starting targets	Specified intent
Cartridge rotation	Zero	Designed
Datums	A fitment seat · B valve/probe axis · C key plane	Designed

Before any filled test: the reference formula supplied for compatibility testing listed CAS 623-19-8 as its solvent, but that number is furfuryl propionate, not the intended IPM or DPG. Rather than guess, every raw material must be confirmed by the formula supplier; formula-filled testing is on hold until then, and none has run.

Engineering notes the longer story

As designed, the cap turns 60° and the cartridge rises 4 mm without rotating; the seal engages before the valve opens, and on the way out the valve closes before the seal releases. These are the designed sequence and starting targets, not measured behaviour.

Nothing here is validated: only a 3D-printed form model exists, for form and handling. The test rig that would measure travel, torque and the valve stroke is specified, not built.

07 — CMFColour · material · finish

Material with a job.

CMF chosen by the designer; colours sampled from the concept renders — a material direction, not a finish specification.

Smoked glass#0E0E10
Permanent body
The object you keep.
Blackened steel#605A54
Collar and bottom cap
The only part the user turns.
Soft-touch black#8D8886
Cartridge shell
The consumable reads quieter than the object.

08 — Project status

Concept

Stage: ConceptA proposition defined through specification, drawings and visuals. Not a complete, measured CAD product.
What exists: A design model, concept renders, AI-assisted reconstruction drawings and a validation plan.
Physical evidence: A 3D-printed form model — form and handling only.
Not claimed: Seal or valve performance
Compatibility with any fragrance
Durability, cost or environmental benefit
Adoption by any fragrance house
Still open: Travel, torque and the valve stroke: outputs of a rig not yet built.
Tolerances: not released until supplier CAD exists.
Formula-filled tests on hold until every raw material is confirmed; none has run.
Images: Concept renders of a design model, not photographs of a prototype. Drawings are AI-assisted reconstructions, not measured drawings.
