MARCELLA

My original whisky decanter at the size I drew it, rebuilt with 3 mm glass walls, a 1.5 L fill, a bar-top stopper and a walnut coffret the bottle fits.

Role: Original design, Rhino modelling, re-engineering, renders
Project type: Own design, re-engineered
Stage: CAD-developed concept
Year: Original 2021 · re-engineered 2026
Tools: Rhino · KeyShot (original)
Images: 3D renders

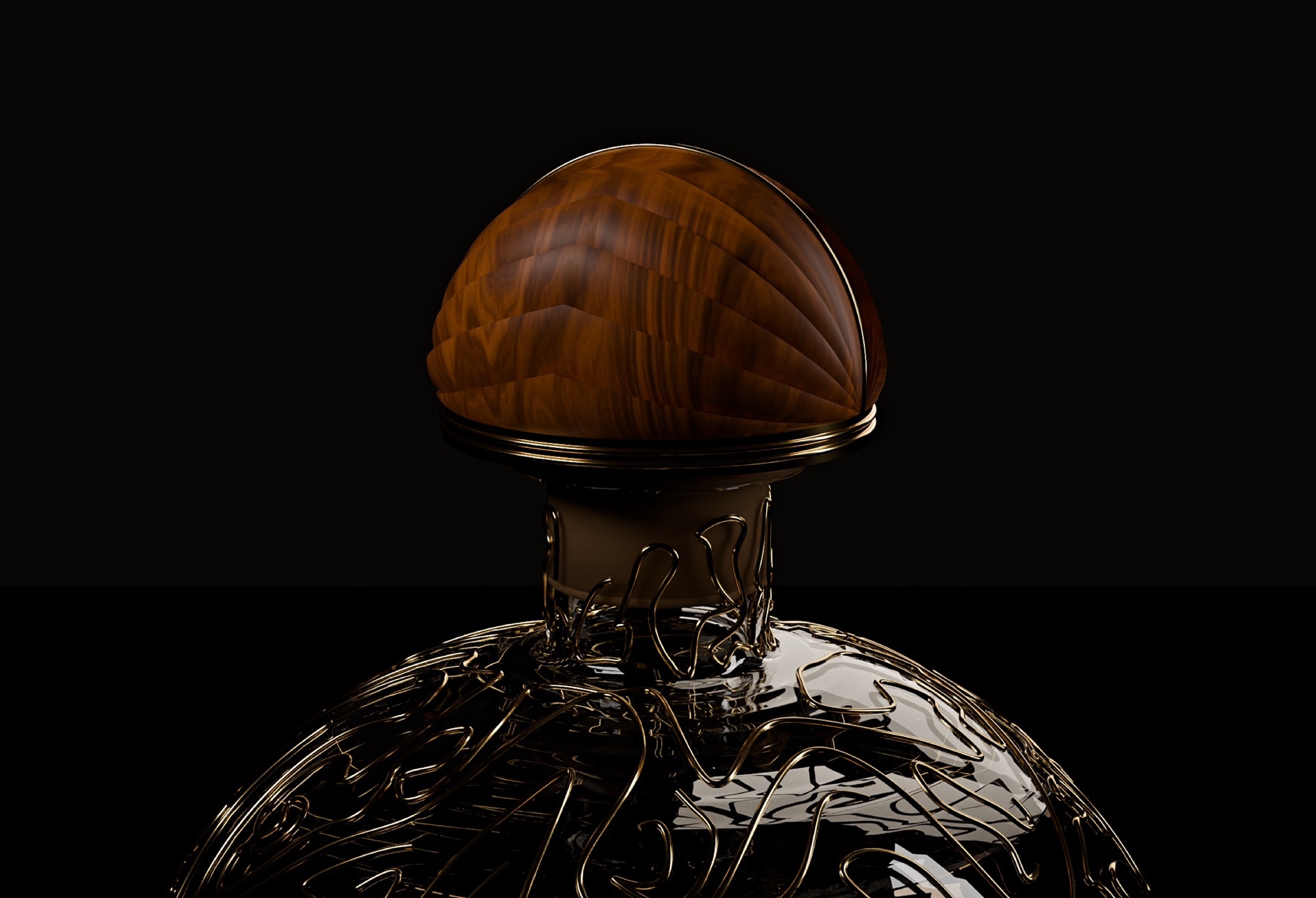

Glass, gold wire and the carved walnut stopper.

01 — The product in 10 secondsMARCELLA

Premium · aged in oak

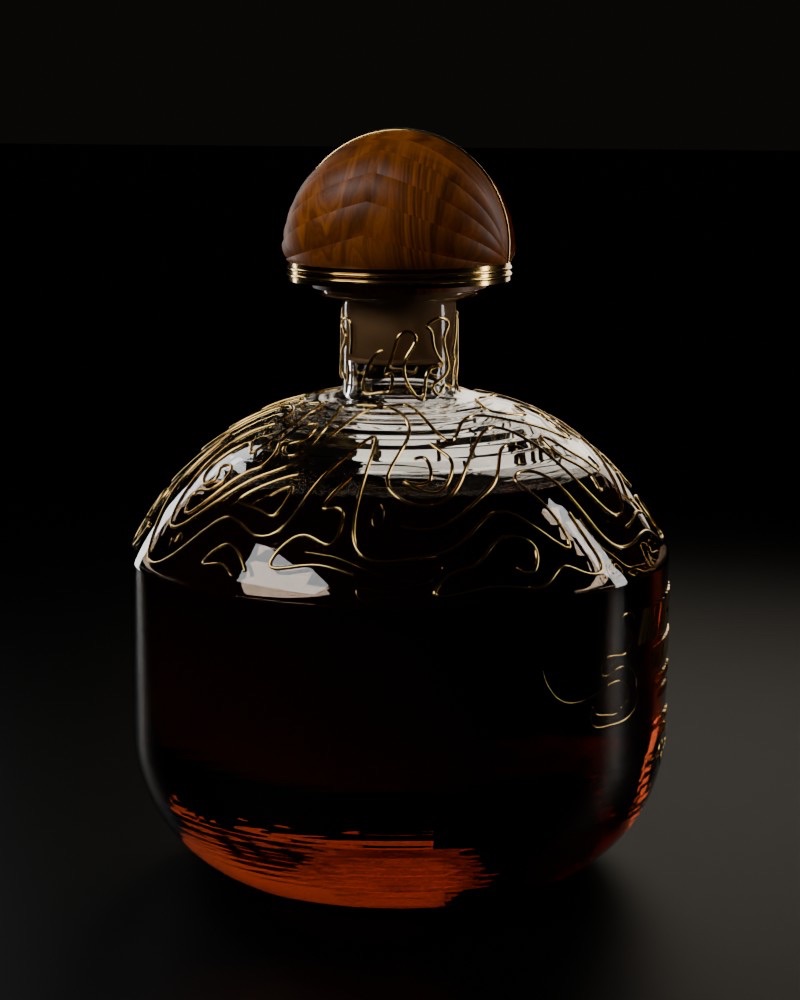

What it is: A round 1.5 L decanter with gold filigree wire, a carved walnut stopper and a dome-shaped walnut coffret.
Who it is for: Premium whisky gifting and collectors who value the decanter as a display object.
The problem: The original glass was 1.25 mm thin, the stopper was glass on glass and the coffret pocket had no clearance.
What is different: 3 mm walls (6 mm under the punt), the largest EU spirits size that keeps headspace, a synthetic-cork bar-top under the carved head and a pocket re-cut with 1.0 mm clearance.

EU standard fill · 7 % headspaceMeasured on model: 1500 ml
Glass walls · 6.0 mm under the puntDesigned · offset: 3.0 mm
Synthetic-cork bar-top shank in a Ø25.9 boreDesigned: Ø26.9
Coffret pocket clearance around the bottleMeasured on model: 1.00 mm

02 — The design challenge

Too thin to make, too tight to box.

The original decanter had 1.25 mm glass, a glass-on-glass plug and a coffret pocket with −0.03 mm clearance and an undercut. The 2026 model keeps the drawn size and the outer revolve.

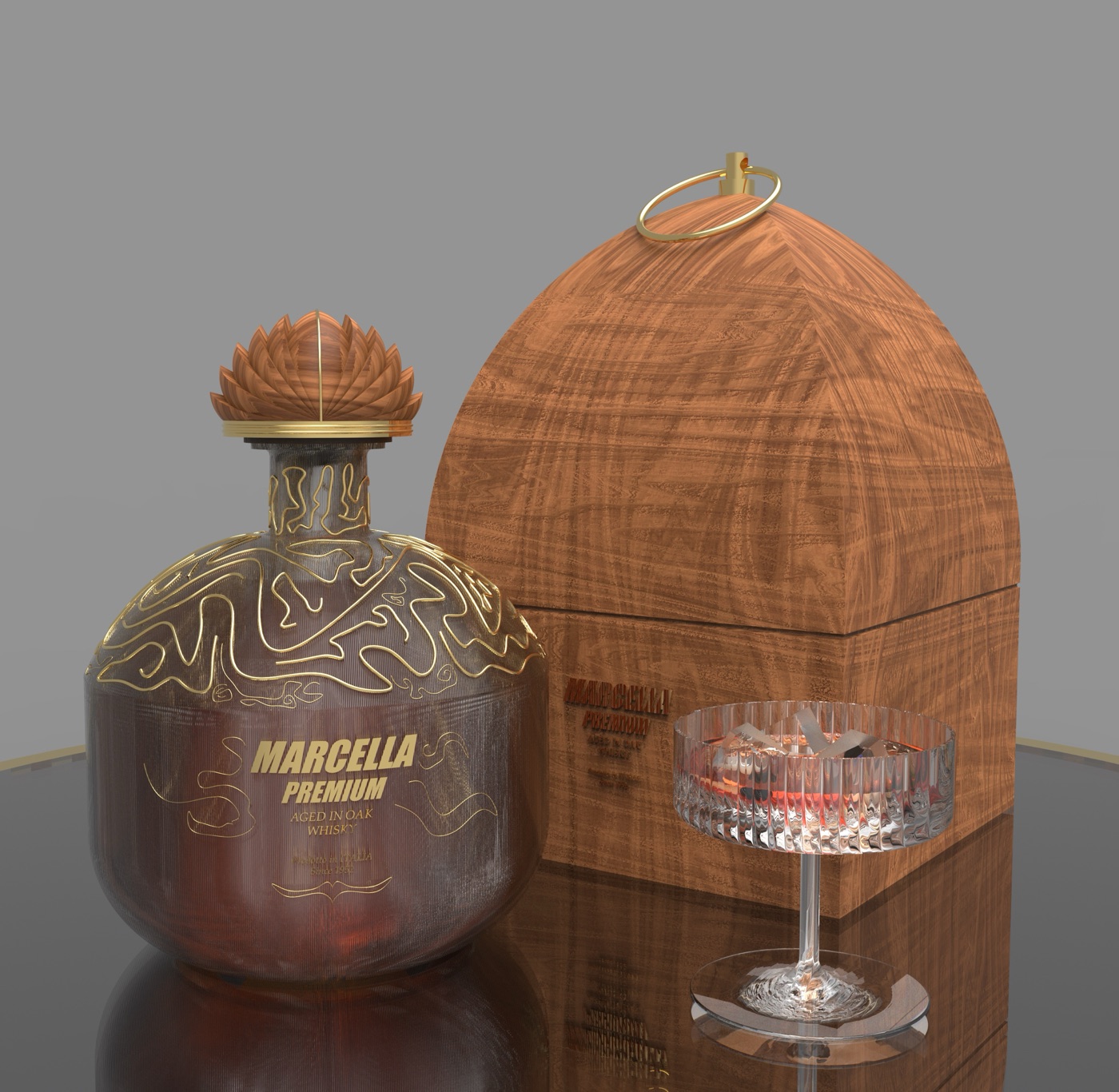

MARCELLA — the original, before the rebuild — Original · KeyShot · 1.25 mm walls, a glass-on-glass plug, a pocket with no clearance.

MARCELLA — the 2026 rebuild — Original · KeyShot · 1.25 mm walls, a glass-on-glass plug, a pocket with no clearance.

Original render and 2026 model — different cameras and lighting, so compare the geometry, not the mood.

03 — My contributionOwn design, re-engineered

What I did.

My own design: the original and its 2026 re-engineering.

Original decanter and coffret design
Rhino modelling
Glass and fill rebuild
Stopper and pocket fit
Technical drawings
Renders

04 — Design response4 decisions · reason · evidence

The decisions that shaped it.

Decision 01

Size kept, walls made real

The glass is the outer profile revolved and offset 3.0 mm at the sides and 6.0 mm under the punt.

Designed · offset

Decision 02

A standard fill

1.5 L — the largest EU spirits size that keeps at least 4 % headspace in the drawn volume.

Measured on model

Original vs 2026 half sections, with findings

Decision 03

A stopper designed to seal

The carved walnut head sits on a Ø26.9 × 20 mm synthetic-cork shank in a Ø25.9 bore. Cork grade and compression still need a closure supplier.

Designed

Decision 04

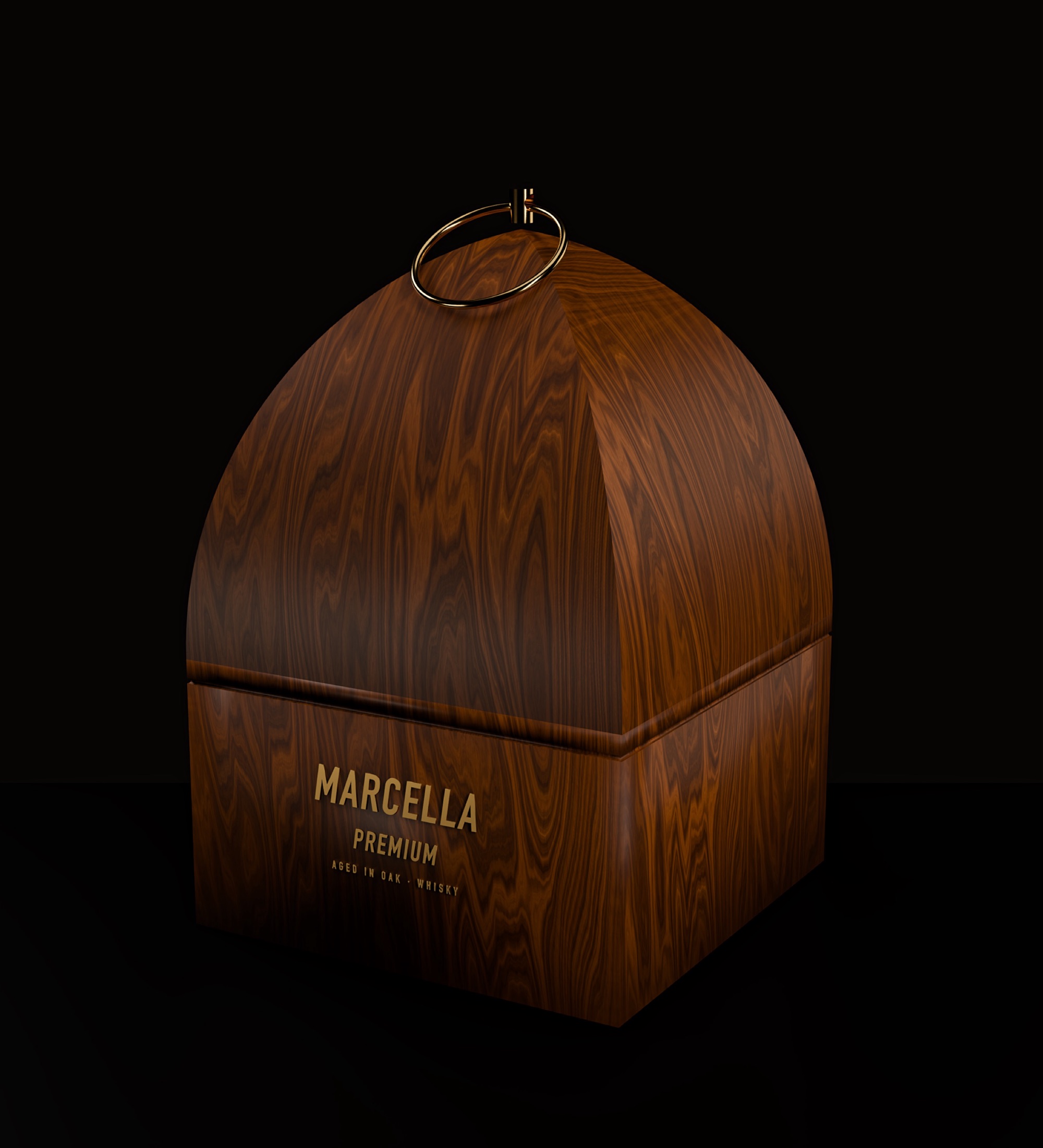

A coffret the bottle fits

The pocket is re-cut as the insertion envelope plus 1.0 mm; the lid is unchanged.

Measured on model

05 — Product architecture & engineeringCAD-developed concept

How it is built.

CAD-developed glass, closure and coffret geometry. The coffret lid is still the original open surface — a real lid needs a wall and a lining.

Key dimensions and their claim level
Item	Value	Level
Fill	1.5 L · 7 % headspace	Measured on model
Glass walls	3.0 mm · 6.0 mm under the punt (offset)	Designed · offset
Stopper shank	Ø26.9 synthetic cork in a Ø25.9 bore	Designed
Pocket clearance	1.0 mm	Measured on model

Engineering notes the longer story

MARCELLA was a round decanter with gold filigree wire, a carved fan stopper and a dome-shaped walnut presentation box. The original glass was 1.25 mm thin, the stopper was glass-on-glass, and the coffret pocket had no clearance.

The 2026 model keeps the drawn size and outer revolve, and gives it 3 mm walls (6 mm under the punt), the largest EU standard spirits fill that leaves headspace, a synthetic-cork bar-top under my carved head, and a pocket re-cut as the insertion envelope. Sealing and cork compression still need a closure supplier and a physical test.

06 — Drawings

CAD-developed concept

Sheet 1 · section A–A and the measured table

Sheet 2 · original vs 2026 half sections, findings

07 — CMFColour · material · finish

Materials as designed.

Materials follow the original renders: matte walnut, not lacquer.

Walnut
Stopper head and coffret · Matte
The original texture, projected in the box’s own frame.
Gold
Filigree wire and lettering
Flint glass
Decanter · 3 mm walls

08 — Project status

CAD-developed concept

Stage: CAD-developed conceptThe product modelled in CAD to the depth the page states — exterior, key interfaces and the checks listed. Not built or physically validated.
What exists: The original Rhino + KeyShot model (2021) and the 2026 model with drawings.
Physical evidence: None.
Not claimed: Seal performance of the stopper
Cork grade or compression
Box hinge, closure or lining
Still open: Label artwork.
A 70 cl edition — not built.
Images: Renders of the re-engineered Rhino model; walnut from the original KeyShot texture. Original: Rhino + KeyShot.
